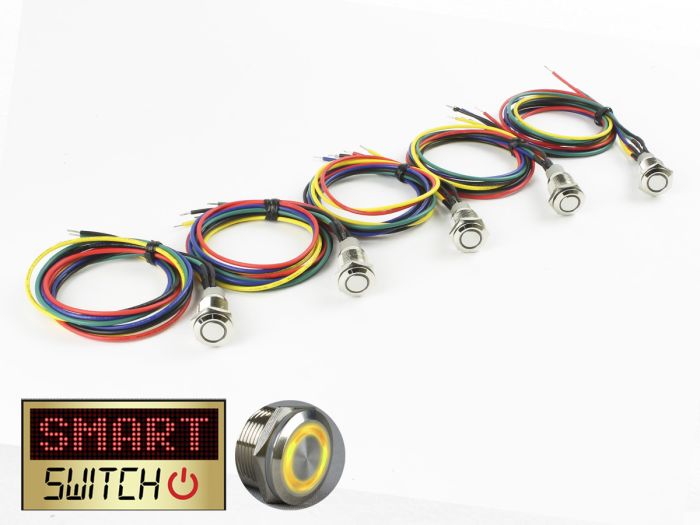

5 x SmartSwitch HALO LED Chrome Latching 19mm 12V/3A Illuminated Round Switch with 50cm Pigtails - YELLOW (TC007)

SmartSwitch Chrome 19mm LED Illuminated Switch (5 PACK) with 50cm soldered Pigtails - HALO / YELLOW / LATCHING

High quality steel and brass illuminated HALO Symbal switch with an integrated LED available in a selection of colours.

Features a LATCHING switch mechanism  One press to activate and one press to deactivate (the switch stays down when activated, and comes back up when deactivated).

Made of a combination of stainless steel and brass with silver contacts providing high strength and a high tolerance to temperature in a lightweight module, ensuring longevity and reliability. Rated IP67 for a high standard of waterproofing and IK10 for high impact protection. The switches are also tamper proof and cannot be removed without access to the rear once fixed.

The switches can be wired or soldered directly in to your existing wires.

Dimensions
Face Diameter: 19mm
Holding Nut Size: 19mm
Fits Hole Size: 16mm
Fits Panel Thickness: 1mm to 15mm

Technical Specifications
Rated Voltages (DC): 6V/12V/24V
Rated Voltages (AC): 100-110V/220-240V
Power Rating: 3A
Mechancal Life: 500,000 Cycles
Electrical Life: 50,000 Cycles
LED Life: 40,000 Hours
Ingress Protection: IP67 (protected from dust and capable of withstanding water immersion between 15 cm and 1 meter for 30 minutes)
Impact Protection: IK10 (protected against 20 joules impact, equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface)
Net Weight: 15g

Pigtail Specifications
Length: 50cm
Rated Voltage: 300V/500V
Diameter: 0.5M^2 / 20 AWG
Normal Operating Temperature: 70°C

Ideal for a wide range of applications including the additional electronical equipment inside & outside vehicles or boats (such as flashing lights, chassis lights, and dome lights) and custom dashboard units, electrical hobby projects, or industry.

We are so confident that you will be not be disappointed with these that we offer a 14-Day No Quibble Money Back Guarantee.
